[联轴器轴#645#D48407]

  • 产品分类：徐工配件
  • 产品描述：
  • 订购热线：13705213256
产品详情

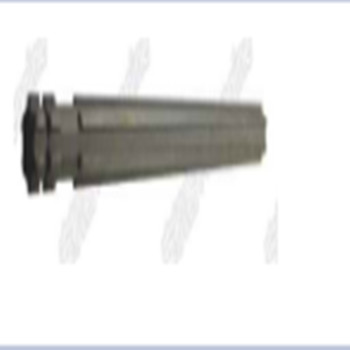

联轴器轴#645#D48407

产品描述

联轴器与轴的配合公差标准本文简介：联轴器与轴的配合公差标准弹性膜片联轴器与轴的配合公差标准一般情况下，轴一般标0～+0.005如果是不常拆的话，就是+0.005～+0.01的过盈配合就可以了，如果要常常的拆装就是过渡配合就可以了。我们还要考虑到轴材料本身在转动时候的热胀，所以轴承越大的话，最好是－0.005～0的间隙配合，最大也不要

联轴器与轴的配合公差标准本文内容：

联轴器与轴的配合公差标准

弹性膜片联轴器与轴的配合公差标准

一般情况下，轴一般标0～+0.005

如果是不常拆的话，就是+0.005～+0.01的过盈配合就可以了，如果要常常的拆装就是过渡配合就可以了。我们还要考虑到轴材料本身在转动时候的热胀，所以轴承越大的话，最好是－0.005～0的间隙配合，最大也不要超过0.01的间隙配合。还有一条就是动圈过盈，静圈间隙。

①当弹性膜片联轴器内径公差带与轴公差带构成配合时，在一般基孔制属过渡配合的公差代号将变为过盈配合，如k5、k6、m5、m6、n6等，但过盈量不大；当轴承内径公差代与h5、h6、g5、g6等构成配合时，不在是间隙而成为过盈配合。

②弹性膜片联轴器外径公差带由于公差值不同于一般基准轴，也是一种特殊公差带，大多情况下，外圈安装在外壳孔中是固定的，有些膜片联轴器部件结构要求又需要调整，其配合不宜太紧，常与H6、H7、J6、J7、Js6、Js7等配合。





免责声明丨 部分内容来源网络！本文仅供交流学习 , 版权归属原作者，部分图片、内容推送时未能及时与原作者取得联系，若来源标注错误或侵犯到您的权益烦请告知，我们将立即删除.

企业介绍

公司供应摊铺机配件，压路机配件，铣刨机配件，摊铺机刮板驱动轴，刮板驱动轴总成，找平仪，找平仪支架以及液压泵和配件。我厂还供应摊铺机易损件，摊铺机平衡梁，搅龙轴，踏板，输料底板，叶片，熨平板，减速机，链轨，履带板，支重轮，刮板大链条，输料链条等。

联系人：梁经理

联系方式：13645201509

（微信同号）

QQ：2870202745

The fitting tolerance standard of coupling and shaft This article introduces: the fitting tolerance standard of coupling and shaft The fitting tolerance standard of elastic diaphragm coupling and shaft Generally, the shaft is generally marked with 0~+0.005 If it is not often disassembled, it is just an interference fit of+0.005~+0.01. If it is to be disassembled frequently, it is just a transition fit. We should also consider the thermal expansion of the shaft material itself during rotation, so the larger the bearing, the better the clearance fit is - 0.005~0, and the maximum is not
Matching tolerance standard of coupling and shaft:
Fit tolerance standard of coupling and shaft
Fit tolerance standard of elastic diaphragm coupling and shaft
Generally, the axis is generally 0~+0.005
If it is not often disassembled, the interference fit of+0.005~+0.01 is enough. If it is to be disassembled frequently, the transition fit is enough. We should also consider the thermal expansion of the shaft material itself during rotation, so the larger the bearing, the better the clearance fit is - 0.005~0, and the maximum clearance fit is not more than 0.01. Another is the dynamic coil interference and the static coil clearance.
① When the inner diameter tolerance zone of the elastic diaphragm coupling and the shaft tolerance zone form a fit, the tolerance code of the transition fit in the general base hole system will become an interference fit, such as k5, k6, m5, m6, n6, etc., but the interference amount is small; When the inner diameter tolerance of the bearing forms a fit with h5, h6, g5, g6, etc., it is no longer a clearance but an interference fit.
② The outer diameter tolerance zone of the elastic diaphragm coupling is also a special tolerance zone because the tolerance value is different from the general reference axis. In most cases, the outer ring is fixed in the shell hole. Some diaphragm coupling components need to be adjusted according to the structural requirements, and their fit should not be too tight, often with H6, H7, J6, J7, Js6, Js7, etc.
Disclaimer | Part of the content comes from the network! This article is only for exchange and learning. The copyright belongs to the original author. Some pictures and content are not timely contacted with the original author when being pushed. If the source label is incorrect or infringes your rights and interests, please inform us and we will delete it immediately
Enterprise introduction

The company supplies paver parts, roller parts, milling machine parts, paver scraper drive shaft, scraper drive shaft assembly, leveling instrument, leveling instrument support, hydraulic pump and accessories. Our factory also supplies vulnerable parts of pavers, paver balance beams, auger shafts, pedals, feeding soleplates, blades, screeds, reducers, chain tracks, track shoes, rollers, scraper large chains, feeding chains, etc.

Contact: Manager Liang
Contact: 13645201509
(WeChat with the same number)

QQ：2870202745
